RCTS3100-8NF00
Description
RFHIC’s RCTS3100-8NF00 is an 8-way, wr284 radial combiner that covers the full 2.9 to 3.3 GHz (s-band), providing a power handling rating of 3kw peak power. The RCTS3100-8NF00 supports various military and commercial applications. Additional connector configurations are available upon request.
View Product Specification
Military
Industrial/Commercial
Specification
| Band | S-band |
|---|---|
| Frequency Range | 2.9~3.3 GHz |
| Waveguide Output | WR284 |
| # of Ways | 8-way |
| Power Handling @ Input | 3kW (Peak) |
| VSWR | < 1.2 : 1 |
| Dimension | 170.9 x 170.9 x 136.1 |
| Category | Radial Combiner |
Related Products
RCTS3100-8NF00 ›
RFHIC’s RCTS3100-8NF00 is an 8-way, wr284 radial combiner that covers the full 2.9 to 3.3 GHz (s-band), providing a power handling rating of 3kw peak p...
RCTS2900-8NF00 ›
RFHIC’s RCTS2900-8NF00 is an 8-way, wr284 radial combiner that covers the full 2.7 to 3.1 GHz (S-band) rated at 3kw peak power. The RCTS2900-8NF00s sup...

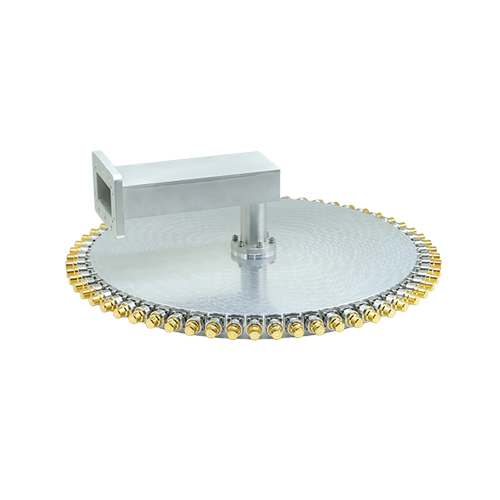

RCRS3300-60QNF00 ›
