RCTS2900-8NF00
Description
RFHIC’s RCTS2900-8NF00 is an 8-way, wr284 radial combiner that covers the full 2.7 to 3.1 GHz (S-band) rated at 3kw peak power. The RCTS2900-8NF00s support various military and commercial applications. Additional connector configurations are available upon request.
View Product Specification
Military
Industrial/Commercial
Specification
| Band | s-band |
|---|---|
| Frequency Range | 2.7~3.1 GHz |
| Waveguide Output | wr284 |
| # of Ways | 8-way |
| Power Handling @ Input | 3kW (Peak) |
| VSWR | < 1.2 : 1 |
| Dimension | 175.8 x 175.8 x 135.5 |
| Category | radial combiner |
Related Products
RCTS3100-8NF00 ›
RFHIC’s RCTS3100-8NF00 is an 8-way, wr284 radial combiner that covers the full 2.9 to 3.3 GHz (s-band), providing a power handling rating of 3kw peak p...
RCTS2900-8NF00 ›
RFHIC’s RCTS2900-8NF00 is an 8-way, wr284 radial combiner that covers the full 2.7 to 3.1 GHz (S-band) rated at 3kw peak power. The RCTS2900-8NF00s sup...
RIW0915K ›
RFHIC’s RIW0915K is an 8-way, wr975 gysel combiner that covers the full 900 to 930 MHz (l-band) with a power handling rating of 2kw CW. The RIW0915K su...

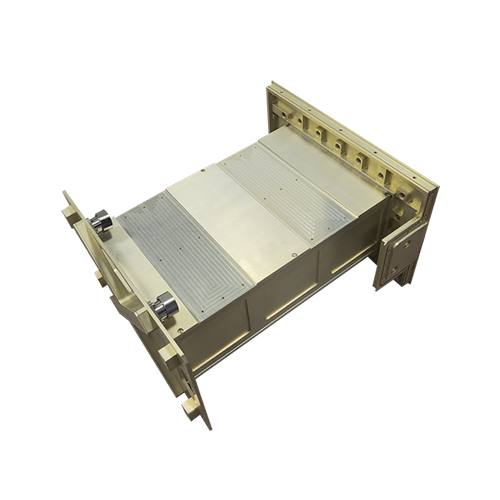

RIW09-AB000 ›
