RWAE159-NF
Description

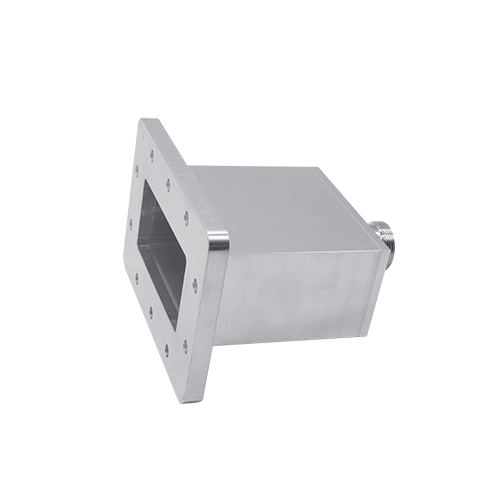

RFHIC’s RWAE159-NF is a wr159, waveguide end launch adapter that covers the full 4.6 to 7.1 GHz rated at 1.5kW at peak power. The RWAE159-NF provides a VSWR of 1.2:1 and a compact size of 45.7 x 81 x 61.9. The RWAE159-NF supports various military and commercial applications. Additional connector configurations are available upon request.
View Product SpecificationSpecification
| Band | c-band |
|---|---|
| Frequency Range | 4.6~7.1 GHz |
| Waveguide Output | WR159 |
| Power Handling @ Input | 200 CW (Peak) |
| VSWR | 1.2:1 |
| Dimension | 45.7 x 81 x 61.9 |
| Category | waveguide endlaunch adapter |
