RRW5459-AC010
Description
RFHIC’s RRW5459-AC010 is a 4-way, CMR137 waveguide combiner that covers the full 5.4 to 5.9 GHz (C-band) rated at 1.5kw peak power. The RRW5459-AC010 supports various military and commercial applications. Additional connector configurations are available upon request.
View Product Specification
Military
Industrial/Commercial
Specification
| Band | c-band |
|---|---|
| Frequency Range | 5.4~5.9 GHz |
| Waveguide Output | CRM137 |
| # of Ways | 4-way |
| Power Handling @ Input | 1.5kW (Peak) |
| VSWR | <1.4:1 |
| Dimension | 356.8 x 184.9 x 75.6 |
| Category | waveguide combiner |
Related Products
RRWKU-AB011 ›
RFHIC’s RRWKU-AB011 is a wr51, 16-way waveguide combiner that covers the full 16 to 18 GHz (ku-band) with a peak power rating of 80W. The RRWKU-AB011 ...

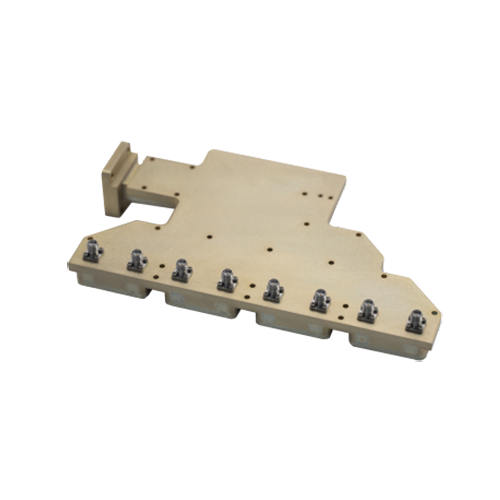

RRW160-AB000 ›
