Products 도파관/RF 수동 부품 RWTH137-108T1

RWTH137-108T1

도파관/RF 수동 부품
Sample Available for Purchase
Contact
Sales

설명

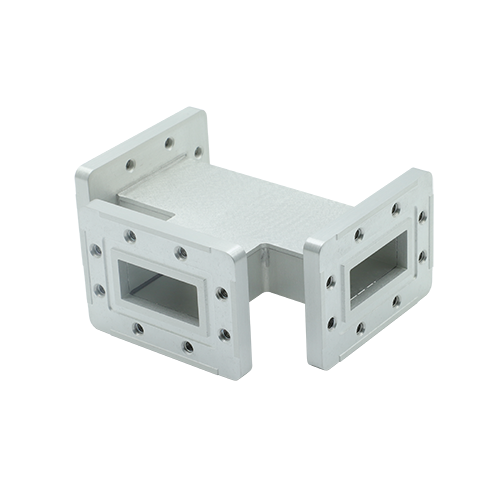

RFHIC’s RWTH137-108T1 is a 2-way, wr137 waveguide combiner that covers the full 5.4 to 5.9 GHz (C-band) rated at 20kw (Peak) power. The RWTH137-108T1 provides a VSWR of 1.2:1 and offers a compact size of  108 x 88.15 x 49.2. The RWTH137-108T1 supports various military and commercial applications. Additional connector configurations are available upon request.

View Product Specification

제품 사양

Band C-band
Frequency Range 5.4~5.9 GHz
Waveguide Output WR137
# of Ways 2-way
Power Handling @ Input 20kw (Peak)
VSWR 1.2:1
Dimension 108 x 88.15 x 49.2
Category waveguide combiner
