Products 도파관/RF 수동 부품 RCTS3100-8NF00

RCTS3100-8NF00

도파관/RF 수동 부품
Sample Available for Purchase
Contact
Sales Download Datasheet

설명

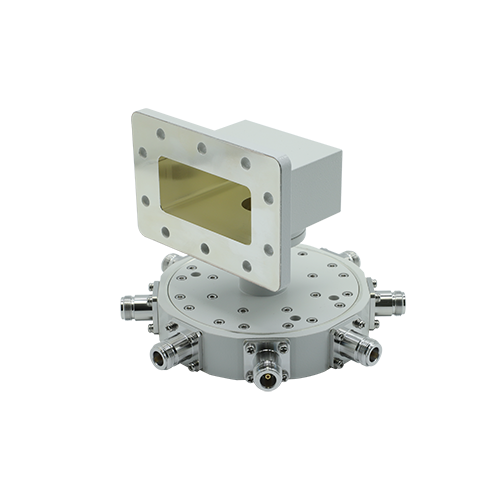

RFHIC’s RCTS3100-8NF00 is an 8-way, wr284 radial combiner that covers the full 2.9 to 3.3 GHz (s-band), providing a power handling rating of 3kw peak power. The RCTS3100-8NF00 supports various military and commercial applications. Additional connector configurations are available upon request.

View Product Specification
Military
Industrial/Commercial

제품 사양

Band S-band
Frequency Range 2.9~3.3 GHz
Waveguide Output WR284
# of Ways 8-way
Power Handling @ Input 3kW (Peak)
VSWR < 1.2 : 1
Dimension 170.9 x 170.9 x 136.1
Category Radial Combiner
