Products 도파관/RF 수동 부품 RWTM340-181.6T1

RWTM340-181.6T1

도파관/RF 수동 부품
Sample Available for Purchase
Contact
Sales

설명

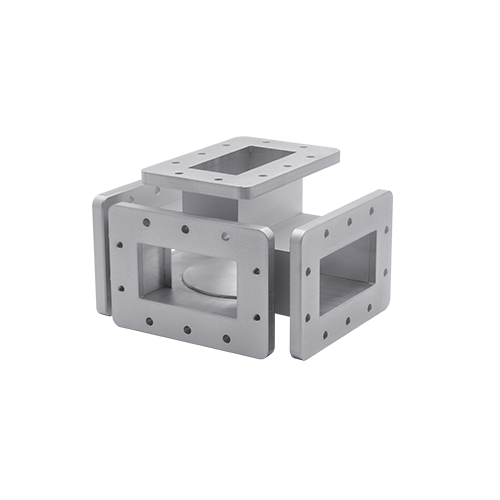

RFHIC’s RWTM340-181.6T1 is an s-band, wr340 magic-t waveguide that covers the full 2.4 to 2.5 GHz (s-band) rated at 13kW CW peak power. The RWTM340-181.6T supports various military and commercial applications. Additional connector configurations are available upon request.

View Product Specification

제품 사양

Band s-band
Frequency Range 2.4~2.5 GHz
Waveguide Output WR340
# of Ways 2-way
Power Handling @ Input 13kW (CW)
VSWR 1.2:1
Dimension 146.52 x 181.6 x 121.06
Category waveguide magic-t
