Products 도파관/RF 수동 부품 RIW2425-AB010

RIW2425-AB010

도파관/RF 수동 부품
Sample Available for Purchase
Contact
Sales Download Datasheet

설명

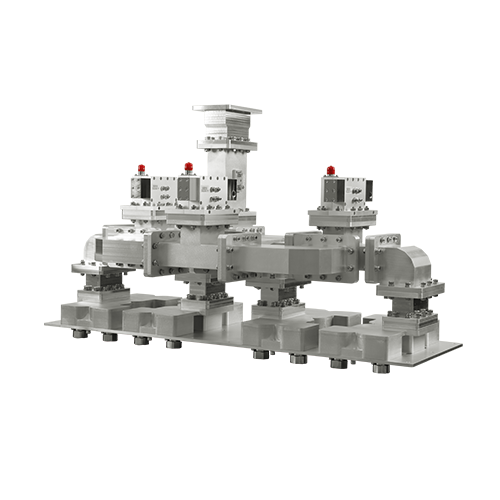

RFHIC’s RIW2425-AB010 is a 16-way, wr430 waveguide combiner that covers the full 2400 to 2500 (S-band) with a power handling rating of 1.6kw CW. The RIW2425-AB010 supports various military and commercial applications. Additional connector configurations are available upon request.

View Product Specification
High power SSPA combining
CVD M/W source combining
M/W waste processing
M/W heating, dry & sintering

제품 사양

Band S-band
Frequency Range 2.4-2.5 GHz
Waveguide Output WR430
# of Ways 16-way
Power Handling @ Input 1.6kW CW
VSWR <1.3:1
Dimension 460.62 x 378.05 x 884.1
Category waveguide combiner
