Products 도파관/RF 수동 부품 RCRS3000-16NF00

RCRS3000-16NF00

도파관/RF 수동 부품
Sample Available for Purchase
Contact
Sales Download Datasheet

설명

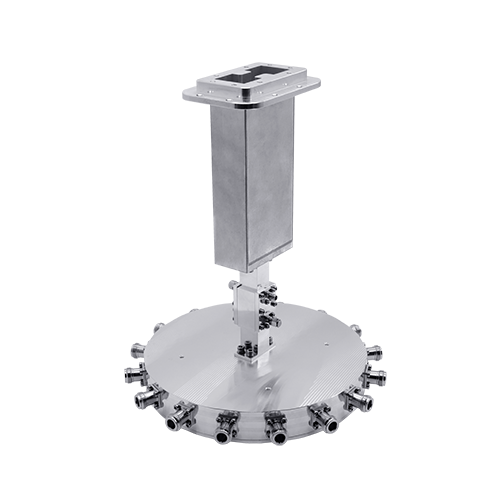

RFHIC’s RCRS3000-16NF00 is a WRD200 16-way radial combiner that covers the full 2 to 4 GHz (s-band) rated at 3kw peak power. The RCRS3000-16NF00 provides a VSWR < 1.5:1 with a compact size of 248.4 x 248.4 x 301. The RCRS3000-16NF00 supports various military and commercial applications. Additional connector configurations are available upon request.

View Product Specification
Military
Commercial/ Industrial

제품 사양

Band s-band
Frequency Range 2.0~4 GHz
Waveguide Output WRD200
# of Ways 16-way
Power Handling @ Input 3kW (Peak)
VSWR < 1.5:1
Dimension 248.4 x 248.4 x 301
Category radial combiner
