Products 도파관/RF 수동 부품 RCS1500-4DF00

RCS1500-4DF00

도파관/RF 수동 부품
Sample Available for Purchase
Contact
Sales Download Datasheet

설명

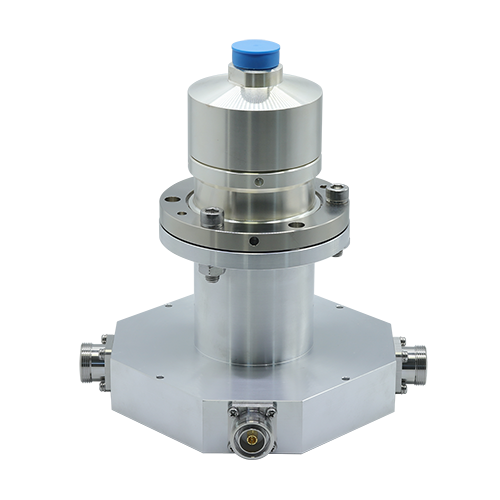

RFHIC’s RCS1500-4DF00 is a 4-way radial combiner that covers 1.5 GHz (+/- 3MHz) at 2kw peak power. The RCS1500-4DF00 supports various military and commercial applications. Additional connector configurations are available upon request.

View Product Specification
Military
Industrial/Commercial

제품 사양

Band L-band
Frequency Range 1.5 GHz (+/- 3MHz)
Waveguide Output 3-1/7 EIA
# of Ways 4-way
Power Handling @ Input 2kW (CW)
VSWR <1.07:1
Dimension 242.2 x 242.2 x 139.2
Category radial combiner
