Products 도파관/RF 수동 부품 RRWKU-AB011

RRWKU-AB011

도파관/RF 수동 부품
Sample Available for Purchase
Contact
Sales Download Datasheet

설명

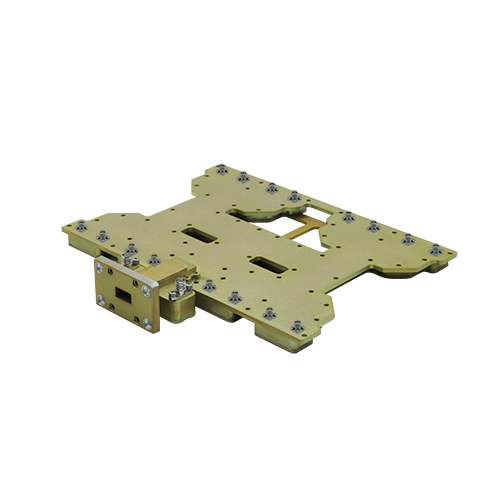

RFHIC’s RRWKU-AB011 is a wr51, 16-way waveguide combiner that covers the full 16 to 18 GHz (ku-band) with a peak power rating of 80W. The RRWKU-AB011  supports various military and commercial applications. Additional connector configurations are available upon request.

View Product Specification
military
Industrial/Commercial

제품 사양

Band ku-band
Frequency Range 16~18 GHz
Waveguide Output WR51
# of Ways 16-way
Power Handling @ Input 80W (Peak)
VSWR <1.5:1
Dimension 197.5 x 177.2 x 30.2
Category waveguide combiner
