Products 도파관/RF 수동 부품 RWAE159-NF

RWAE159-NF

도파관/RF 수동 부품
Sample Available for Purchase
Contact
Sales

설명

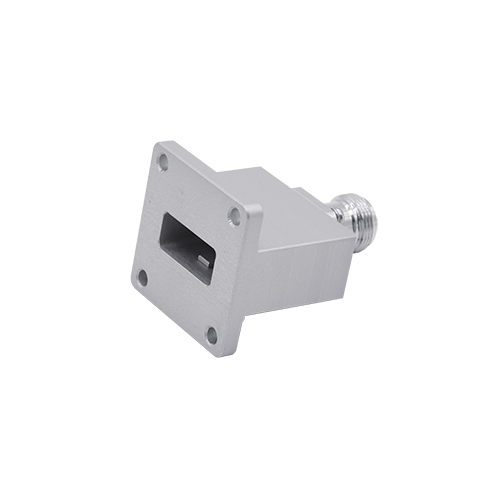

RFHIC’s RWAE159-NF is a wr159, waveguide end launch adapter that covers the full 4.6 to 7.1 GHz rated at 1.5kW at peak power. The RWAE159-NF provides a VSWR of 1.2:1 and a compact size of 45.7 x 81 x 61.9. The RWAE159-NF supports various military and commercial applications. Additional connector configurations are available upon request.

View Product Specification

제품 사양

Band c-band
Frequency Range 4.6~7.1 GHz
Waveguide Output WR159
Power Handling @ Input 200 CW (Peak)
VSWR 1.2:1
Dimension 45.7 x 81 x 61.9
Category waveguide endlaunch adapter
