Products 도파관/RF 수동 부품 RRW5459-AB010

RRW5459-AB010

도파관/RF 수동 부품
Sample Available for Purchase
Contact
Sales Download Datasheet

설명

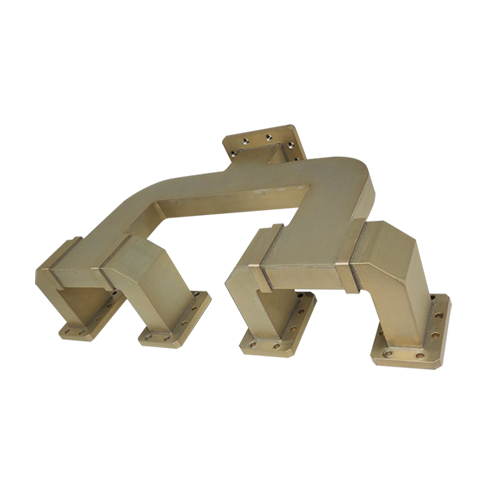

RFHIC’s RRW5459-AB010 is a 4-way, h plane, waveguide combiner that covers the full 5.4 to 5.9 GHz (c-band) rated at 5kw peak power. The RRW5459-AB010 provides a VSWR of <1.3:1 and a compact size of 178.45 x 90.53 x 305.9. The RRW5459-AB010 supports various military and commercial applications. Additional connector configurations are available upon request.

View Product Specification

제품 사양

Band C-band
Frequency Range 5.4~5.9 GHz
Waveguide Output WR137
# of Ways 4-way
Power Handling @ Input 5kw (Peak)
VSWR <1.3:1
Dimension 178.45 x 90.53 x 305.9
Category waveguide combiner
