Products RF 트랜지스터 GaN 트랜지스터 – 통신 ID26601D

ID26601D

GaN 트랜지스터 – 통신
Production
Contact
Sales

설명

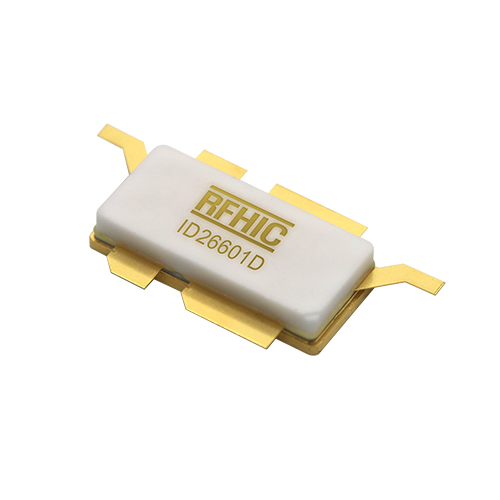

RFHIC’s ID26601D is a discrete gallium nitride on silicon carbide (GaN-on-SiC) high-electron-mobility transistor (HEMT) which operates from 2620 to 2690 MHz.The ID26601D delivers 600 W of saturated power at 48V and is designed to provide higher efficiency and linearity. The device is internally matched and is ideally suited for 4G LTE and 5G NR systems.

View Product Specification
4G LTE, 5G NR system
Multi-Band, Multi-Mode
High Efficiency Doherty Amplifier

제품 사양

Max Freq. 2690MHz
Typ Output Power 85W
Saturation Power 600W
Power Gain 15dB
Efficiency 47.4%
VDC 48
Package RF24009DKR3
Package Type Flange
Min Freq2. 2620MHz
